Hastelloy C-22/Alloy C-22/UNS N06022/W. Nr. 2.4602

Hastelloy C-22/Alloy C-22/UNS N06022/W. Nr. 2.4602

Hastelloy C-22 (Alloy C-22), with UNS N06022 and W.Nr. 2.4602, is a versatile nickel-chromium-molybdenum alloy known for its outstanding resistance to a wide range of corrosive media. It performs exceptionally well in oxidizing and reducing environments, offering excellent protection against pitting, crevice corrosion, and stress corrosion cracking in harsh chemical processing conditions.

Thanks to its superior corrosion resistance, Hastelloy C-22 is widely used in industries such as chemical processing, marine, pollution control, and pharmaceutical manufacturing. Common applications include reactors, scrubbers, heat exchangers, and piping systems where long-term reliability and resistance to aggressive chemicals are critical.

Hastelloy C-22/Alloy C-22/UNS N06022/W. Nr. 2.4602
Inquiry Now Send Email

Hastelloy C-22/Alloy C-22/UNS N06022/W. Nr. 2.4602 Chemical Compositions

Nickel (Ni) Balance
Chromium (Cr) 20.0-22.5%
Molybdenum (Mo) 12.5-14.5%
Iron (Fe) 2.0-6.0%
Tungsten (W) 2.5-3.5%
Cobalt (Co) 2.5% max.
Vanadium (V) 0.35% max.
Carbon (C) 0.015% max.
Phosphorus (P) 0.8% max.
Carbon (C) 0.03% max.
Manganese (Mn) 0.50% max.
Sulfur (S) 0.02% max.
Silicon (Si) 0.08% max.
Phosphorus (P) 0.02% max.

Hastelloy C-22/Alloy C-22/UNS N06022/W. Nr. 2.4602 Physical Properties

Density g/cm³ 8.61
lb/in 0.311
Melting Range °C 1351-1387
°F 2464-2529
Specific Heat  J/kg °C 381
Btu/lb °F 0.091
Permeability at 200 oersted (15.9 kA/m) 0≤1.001
Electrical Resistivity ohm•circ mil/ft 730.7
microhm•m 1.215
Young’s Modulus(Dynamic) 103ksi 30.3
GPa 209
Coefficient of Expansion 70-200°F,106 in/in•°F 6.90
21-193°C, μm/m•°C 12.42

Hastelloy C-22/Alloy C-22/UNS N06022/W. Nr. 2.4602 Mechanical Properties

Temperature

Yield strength

Yield strength

Tensile strength

Elongation

Rp 0.2

Rp 1.0

Rm

A

°C

°F

MPa

ksi

MPa

ksi

MPa

ksi

%

20

68

310

45

335

48.6

690-950

100-138

45

Hastelloy C-22/Alloy C-22/UNS N06022/W. Nr. 2.4602 Standard Specifications

Bar, Rod and Wire Seamless Pipe and Tube Welded Pipe and Tube Plate, Sheet, and Strip Forgings Fittings
ASTM B 574/ASME SB 574 ASTM B 622 / ASME SB 622 ASTM B 626 /ASME SB 626, ASTM B 619 / ASME SB 619 ASTM B 575/ASME SB 575 ASTM B 564 /ASME SB 564, B472/SB472, B462/SB462 ASTM B 366/ASME SB 366

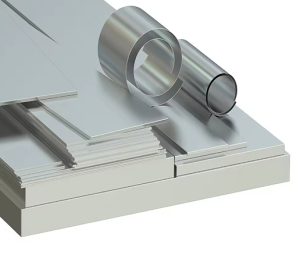

Standard product forms of Hastelloy C-22/Alloy C-22/UNS N06022/W. Nr. 2.4602 are pipe, tube, sheet, strip, plate, round bar, flat bar, forging stock, hexagon and wire. The products are available in a wide variety of sizes. Please contact us at [email protected] for full information.
