Incoloy 25-6Mo/Alloy 926/N08926/W.Nr. 1.4529

Incoloy 25-6Mo/Alloy 926/N08926/W.Nr. 1.4529

Incoloy 25-6Mo, also known as Alloy 926, with designations UNS N08926 and W.Nr. 1.4529, is a super-austenitic stainless steel alloy featuring high nickel, chromium, and molybdenum content. The alloy is designed to provide excellent resistance to pitting, crevice corrosion, and stress corrosion cracking in chloride-bearing environments. With controlled nitrogen addition, it offers enhanced mechanical strength and corrosion resistance compared to conventional stainless steels such as 904L.

Incoloy 25-6Mo is widely applied in industries such as chemical processing, seawater desalination, flue gas desulfurization, and oil & gas. Common forms include plates, sheets, pipes, tubes, bars, and flanges, making it suitable for heat exchangers, evaporators, marine equipment, and chemical storage tanks. Its superior corrosion resistance and strength allow for long service life in aggressive environments where standard stainless steels cannot perform reliably.

Incoloy 25-6Mo/Alloy 926/N08926/W.Nr. 1.4529
Inquiry Now Send Email

Incoloy 25-6Mo/Alloy 926/N08926/W.Nr. 1.4529 Chemical Compositions

Element Content (%)
Iron, Fe 47.3
Nickel, Ni 24-26
Chromium, Cr 19-21
Molybdenum, Mo 6-7
Manganese, Mn ≤2
Others Remainder

Incoloy 25-6Mo/Alloy 926/N08926/W.Nr. 1.4529 Physical Properties

Properties Metric Imperial
Density 8.03 gm/cm3 0.290 lb/in3

Incoloy 25-6Mo/Alloy 926/N08926/W.Nr. 1.4529 Mechanical Properties

Properties Metric Imperial
Tensile strength(annealed) 689 MPa 100 ksi
Yield strength(annealed) 331 MPa 48 ksi
Elongation at Break( in 2 in 50 mm) ≥42% ≥42%
Hardness, Rockwell B 86 86
Modulus of Elasticity 188 GPa 27300 ksi
Poissons Ratio 0.33 0.33

Incoloy 25-6Mo/Alloy 926/N08926/W.Nr. 1.4529 Standard Specifications

Form Standard
Metal Type UNS N08367
Bar ASTM B691 / ASME SB691
Wire ASTM B691 / ASME SB691
Sheet ASTM B688, A240 / ASME SB688 SA240
Plate ASTM B688, A240 / ASME SB688 SA240
Tube ASTM B676 WELDED
Pipe ASTM B675 WELDED
Fitting ASTM B366 / ASME SB366 / ASTM B462 / ASME SB462
Forging ASTM B472 / ASTM B462 / ASME SB462
Weld Wire 622, 686 or 625
Weld Electrode Inconel 112, 122 or INCOWELD 686CPT
Din

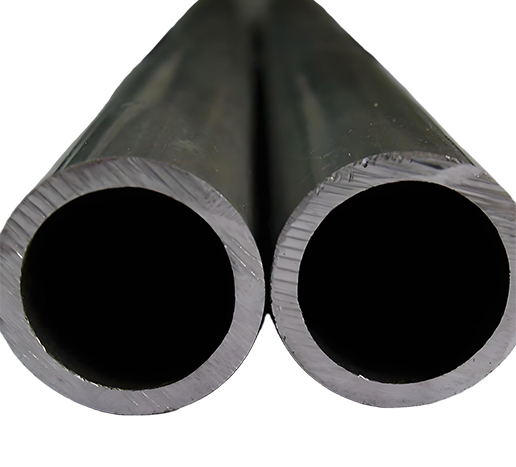

Standard product forms of Incoloy 25-6Mo/Alloy 926/N08926/W.Nr. 1.4529 are pipe, tube, sheet, strip, plate, round bar, flat bar, forging stock, hexagon and wire. The products are available in a wide variety of sizes. Please contact us at [email protected] for full information.

    • Name

    • Email*

    • Phone

    • Country

    • Message*


    Available Products

    Related Products

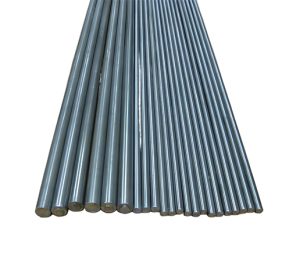

    Incoloy DS
