Monel 400, also known as Alloy 400, with the UNS designation N04400 and W.Nr. 2.4360, is a nickel-copper alloy known for its excellent corrosion resistance, particularly in marine environments. Comprised of approximately 67% nickel and 23% copper, Monel 400 also exhibits good mechanical properties over a wide range of temperatures. This alloy is commonly used in applications such as marine engineering, chemical processing, and equipment for the oil and gas industry due to its resistance to corrosive environments and high strength. Additionally, Monel 400 is known for its ability to withstand high-velocity seawater and is often used in seawater valves, pump shafts, and marine fixtures.
| Nickel (Ni) | 63% Minimum |
| Copper (Cu) | 28-34% |
| Iron (Fe) | 2.5% Maximum |
| Manganese (Mn) | 2% Maximum |
| Carbon (C) | 0.3% Maximum |
| Silicon (Si) | 0.5% Maximum |
| Sulfur (S) | 0.024% Maximum |
| Density | lb/in3 | 0.318 |
| g/cm3 | 8.80 | |
| Melting Range | °F | 2370-2460 |
| °C | 1300-1350 | |
| Modulus of Elasticity | 103 ksi | |
| Tension | 26.0 | |
| Compression | 26.0 | |
| Torsion | 9.5 | |
| Poisson’s Ratio | 0.32 | |
| Curie Temperature | °F | 70-120 |
| °C | 21-49 |
|
Temperature |
Yield strength |
Tensile strength |
|||
|
Rp 0.2 |
Rm |
||||
|
°C |
°F |
MPa |
ksi |
MPa |
ksi |
|
20 |
68 |
175 |
25.4 |
450 |
63.5 |
| Rod and bar | Seamless Pipe and Tube | Welded Pipe and Tube | Plate, Sheet & Strip | Fittings | Forgings |
| ASTM B 164/ ASME SB 164 | ASTM B 165/ ASME SB 165, ASTM B 163/ ASME SB163 | ASTM B 725/ ASME SB 725, ASTM B 730/ ASME SB 730 | ASTM B 127/ ASME SB 127 | ASTM B 366/ ASME SB 366 | ASTM B 564/ ASME SB 564 |

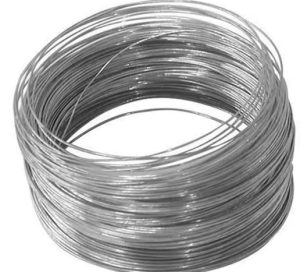

Standard product forms of Monel 400/Alloy 400/UNS N04400/W.Nr. 2.4360 are pipe, tube, sheet, strip, plate, round bar, flat bar, forging stock, hexagon and wire. The products are available in a wide variety of sizes. Please contact us at [email protected] for full information.
