Alloys
Monel 401/UNS N04401

Monel 401/UNS N04401

Monel 401 (UNS N04401) is a nickel-copper alloy designed with excellent resistance to seawater, steam, and chemical environments, while also offering unique electrical and thermal conductivity properties. With a balanced combination of strength, ductility, and corrosion resistance, Monel 401 is especially suitable for electrical and electronic applications where both durability and conductivity are required.

This alloy is widely used in the manufacture of electrical resistance wires, thermostats, heating elements, marine components, and industrial equipment. Its ability to maintain stability under corrosive and high-temperature conditions makes Monel 401 a reliable choice for critical applications. It is typically available in the form of wires, rods, bars, and strips, serving industries such as marine engineering, power generation, and electronics.

Monel 401/UNS N04401

Monel 401/UNS N04401 Chemical Compositions

Element Content (%)
Nickel, Ni 40 – 45 max
Copper, Cu Remainder
Manganese, Mn 2.25 max
Iron, Fe 0.75 max
Silicon, Si 0.25 max
Cobalt, Co 0.25 max
Carbon, C 0.10 max
Sulfur, S 0.015 max

Monel 401/UNS N04401 Physical Properties

Properties Metric Imperial
Density 8.89 gm/cm3 0.319 lb/in3

Monel 401/UNS N04401 Mechanical Properties

Properties Metric Imperial
Tensile strength(annealed) 441 MPa 64 ksi
Yield strength 134 MPa 19 ksi

Monel 401/UNS N04401 Standard Specifications

STANDARD UNS AMS ASTM JIS W.Nr.
Monel 401 N04401 4632 B164 / B865 JIS G 4305 N04401 2.4360

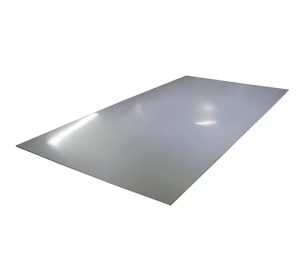

Standard product forms of Monel 401/UNS N04401 are pipe, tube, sheet, strip, plate, round bar, flat bar, forging stock, hexagon and wire. The products are available in a wide variety of sizes. Please contact us at [email protected] for full information.
