Monel 405/Monel R405/N04405/W.Nr. 2.4361

Monel 405/Monel R405/N04405/W.Nr. 2.4361

Monel 405 (UNS N04405, W.Nr. 2.4361) is a nickel-copper alloy with controlled additions that provide excellent corrosion resistance and mechanical strength. Similar to Monel 400, it offers outstanding resistance to seawater, acidic environments, and alkaline media, while its improved machinability makes it highly suitable for components requiring extensive machining. The alloy maintains toughness and durability across a wide range of temperatures.

Monel 405 is widely used in the marine industry, chemical processing, oil and gas equipment, seawater valves, pump shafts, fasteners, and heat exchangers. Its excellent resistance to chloride-induced stress corrosion cracking and ability to withstand harsh service conditions make it a preferred material for critical industrial applications. Available in bars, rods, plates, sheets, pipes, and fittings, Monel 405 is valued for its reliability and performance in demanding environments.

Monel 405/Monel R405/N04405/W.Nr. 2.4361
Inquiry Now Send Email

Monel 405/Monel R405/N04405/W.Nr. 2.4361 Chemical Compositions

Elements Content (%)
Nickel, Ni 63
Copper, Cu 28-34
Iron, Fe  2.50
Manganese, Mn  2
Carbon, C  0.30
Silicon, Si  0.50
Sulfur, S 0.025 – 0.060

Monel 405/Monel R405/N04405/W.Nr. 2.4361 Physical Properties

Properties Metric Imperial
Density 8.80 g/cm³ 0.318 lb/in³
Melting point 1338°C 2440°F

Monel 405/Monel R405/N04405/W.Nr. 2.4361 Mechanical Properties

Properties Metric Imperial
Tensile Strength (annealed) 550 MPa 79800 psi
Yield strength (@ strain 0.200%, annealed) 240 MPa 34800 psi
Elongation at break (annealed) 40% 40%

Monel 405/Monel R405/N04405/W.Nr. 2.4361 Standard Specifications

Form

 Standard
Metal Type UNS N04405
Bar ASTM B164 QQ-N-281
Wire
Sheet ASTM B127 QQ-N-281
Plate ASTM B127 QQ-N-281
Fitting
Forging ASTM B564
Weld Wire
Weld Electrode FM 190/ ENiCu-7

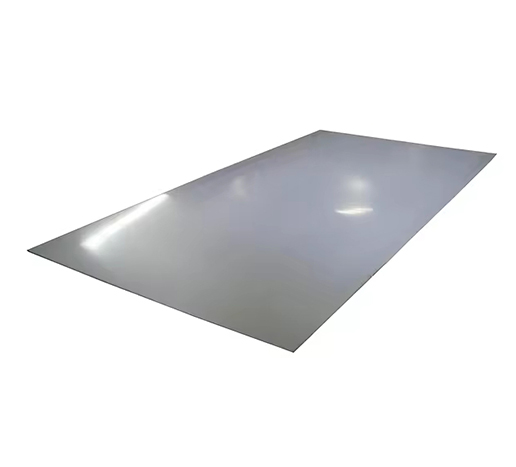

Standard product forms of Monel 405/Monel R405/N04405/W.Nr. 2.4361 are pipe, tube, sheet, strip, plate, round bar, flat bar, forging stock, hexagon and wire. The products are available in a wide variety of sizes. Please contact us at [email protected] for full information.

    • Name

    • Email*

    • Phone

    • Country

    • Message*


    Available Products

    Related Products

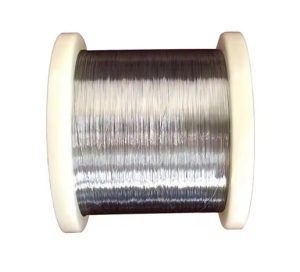

    Monel 401/UNS N04401
