Monel K-500 (Alloy 500), with UNS N05500 and W.Nr. 2.4375, is a high-strength, corrosion-resistant nickel-copper alloy. It offers exceptional resistance to seawater, acids, and other corrosive environments, making it ideal for demanding applications in marine, aerospace, and chemical industries.
Monel K-500 combines the strength and hardness of age-hardening alloys with the excellent corrosion resistance of Monel 400. It is widely used for components such as shafts, valves, and pumps, where high strength and durability are required under extreme conditions.
| Nickel (Ni) | 63% Minimum |
| Copper (Cu) | 27-33% |
| Iron (Fe) | 2.0% Maximum |
| Manganese (Mn) | 1.5% Maximum |
| Carbon (C) | 0.18% Maximum |
| Silicon (Si) | 0.5% Maximum |
| Sulfur (S) | 0.01maximum |
| Titanium (Ti) | 0.35-0.85% |
| Aluminum (Al) | 2.30-3.15% |
| Density | lb/in3 | 0.305 |
| g/cm3 | 8.44 | |
| Melting Range | °F | 2400-2460 |
| °C | 1315-1350 | |
| Modulus of Elasticity | 103 ksi | |
| Tension | 26.0 | |
| Torsion | 9.5 | |
| Poisson’s Ratio (aged material at room temperature) | 0.32 |
|
Temperature |
Yield strength |
Tensile strength |
Elongation |
|||
|
Rp 0.2 |
Rm |
A |
||||
|
°C |
°F |
MPa |
ksi |
MPa |
ksi |
% |
|
20 |
68 |
690 |
100.1 |
1100 |
159.5 |
24 |
| Bar, Rod, Wire, Forgings, and Forging Stock |
| ASTM B 865/ ASME SB 865 |

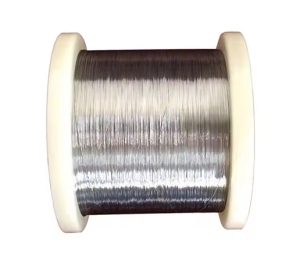

Standard product forms of Monel K-500/Alloy 500/UNS N05500/W.Nr. 2.4375 are pipe, tube, sheet, strip, plate, round bar, flat bar, forging stock, hexagon and wire. The products are available in a wide variety of sizes. Please contact us at [email protected] for full information.
