Home > Alloys > Pur Nickel
Nickel 200 (Ni 200), also known as Alloy 200 with UNS N02200 and W.Nr. 2.4066, is a pure nickel alloy with outstanding resistance to alkalis, acids, and many corrosive environments. It is widely used in industries such as chemical processing, aerospace, and food processing, where reliability and corrosion resistance are crucial.
With excellent mechanical properties, Nickel 200 is ideal for applications requiring high strength, good thermal and electrical conductivity, and resistance to stress corrosion cracking. It is commonly used for components like valves, pumps, and heat exchangers in harsh environments.
| Nickel (Ni) | 99.0% minimum |
| Copper (Cu) | 0.25% maximum |
| Iron (Fe) | 0.40% maximum |
| Manganese (Mn) | 0.35% maximum |
| Carbon (C) | 0.15% maximum |
| Silicon (Si) | 0.35% maximum |
| Sulfur (S) | 0.01maximum |
| Density | lb/in3 | 0.321 |
| g/cm3 | 8.89 | |
| Melting Range | °F | 2615-2635 |
| °C | 1435-1446 | |
| Specific Heat | Btu/lb•°F | 0.109 |
| J/kg•°C | 456 | |
| Curie Temperature | °F | 680 |
| °C | 360 |
|
Temperature |
Yield strength |
Yield strength |
Tensile strength |
Elongation |
||||
|
Rp 0.2 |
Rp 1,0 |
Rm |
A |
|||||
|
°C |
°F |
MPa |
ksi |
MPa |
ksi |
MPa |
ksi |
% |
|
20 |
68 |
100 |
14.5 |
125 |
15.1 |
370 |
53.7 |
40 |
| Rod and bar | Seamless Pipe and Tube | Welded Pipe and Tube | Plate, Sheet & Strip | Fittings |
| ASTM B 160/ ASME SB 160 | ASTM B 161/ ASME SB161, ASTM B 163/ ASME SB163 | ASTM B 725/ ASME SB 725, ASTM B 730/ ASME SB 730 | ASTM B 162/ ASME SB 162 | ASTM B 366/ ASME SB 366 |

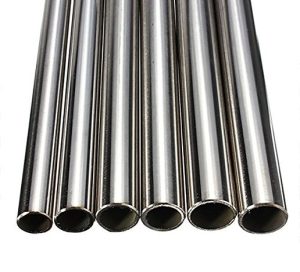

Standard product forms of Nickel 200/Ni 200/Alloy 200/UNS N02200/W.Nr. 2.4066 are pipe, tube, sheet, strip, plate, round bar, flat bar, forging stock, hexagon and wire. The products are available in a wide variety of sizes. Please contact us at [email protected] for full information.
