Custom Alloy C276 springs are engineered components made from Hastelloy C276, a nickel-molybdenum-chromium superalloy known for its exceptional corrosion resistance, mechanical stability, and performance in extreme environments. These springs are widely used in chemical processing, offshore equipment, pollution-control systems, marine engineering, and high-temperature operations. Custom design allows manufacturers to tailor dimensions, load capacity, and heat treatment to meet demanding industrial requirements.
What Makes Alloy C276 Suitable for Springs
Alloy C276 provides excellent resistance to pitting, crevice corrosion, and stress corrosion cracking. Its metallurgical composition and mechanical strength make it an ideal material for compression springs, tension springs, torsion springs, and sealing components used in corrosive and high-temperature environments.
Chemical Composition of Alloy C276
| Element | Percentage (%) |
|---|---|
| Nickel (Ni) | Balance |
| Molybdenum (Mo) | 15–17 |
| Chromium (Cr) | 14.5–16.5 |
| Iron (Fe) | 4–7 |
| Tungsten (W) | 3–4.5 |
| Cobalt (Co) | ≤ 2.5 |
| Manganese (Mn) | ≤ 1 |
| Silicon (Si) | ≤ 0.08 |
| Carbon (C) | ≤ 0.01 |
Mechanical Properties of Alloy C276 Spring Material
| Property | Typical Value |
|---|---|
| Tensile Strength | 690–785 MPa |
| Yield Strength | 280–355 MPa |
| Elongation | 40–50% |
| Hardness | Rockwell B 85–95 |
| Density | 8.89 g/cm³ |
| Melting Range | 1325–1370 °C |
Types of Custom Alloy C276 Springs
| Spring Type | Characteristics | Typical Application |
|---|---|---|
| Compression Springs | High load capacity, excellent fatigue strength | Pumps, valves, chemical equipment |
| Torsion Springs | Twisting force capability | Industrial seal assemblies |
| Tension Springs | High elasticity and resistance to deformation | Marine instruments |
| Flat / Wave Springs | Space-saving design | High-precision corrosion-resistant mechanisms |
Advantages of Custom Alloy C276 Springs
Custom springs made from Alloy C276 offer numerous advantages due to the material’s exceptional performance characteristics:
| Feature | Benefit |
|---|---|
| Excellent Corrosion Resistance | Reliable in acids, chlorine-bearing solutions, seawater, and oxidizing environments |
| High-Temperature Stability | Maintains mechanical strength under elevated temperatures |
| Good Fabricability | Can be formed, wound, and heat-treated into precise spring designs |
| Stress Corrosion Cracking Resistance | Suitable for high-pressure chemical or oil & gas systems |
| Long Service Life | Reduces maintenance and replacement costs in harsh applications |
Typical Applications of Alloy C276 Springs
Due to their exceptional durability and corrosion resistance, Alloy C276 springs are used in industries requiring reliable performance under extreme conditions.
| Industry | Application |
|---|---|
| Chemical Processing | Acidic reactors, pumps, valves, chlorination systems |
| Oil & Gas | Downhole tools, offshore equipment, sour-gas environments |
| Marine Engineering | Seawater systems, anti-corrosion mechanisms |
| Pollution Control | Flue-gas desulfurization systems |
| Pharmaceutical Production | High-purity corrosive fluid systems |
Manufacturing Process for Custom Alloy C276 Springs
Manufacturers follow strict procedures to ensure spring accuracy, performance, and durability. The typical workflow includes:
- Material selection and chemical verification
- Coiling or forming based on custom dimensions
- Heat treatment for stress relief
- Surface finishing (polishing, pickling, passivation)
- Load testing and quality inspection
Size Options for Custom Springs
| Specification | Range |
|---|---|
| Wire Diameter | 0.2 mm – 12 mm |
| Outer Diameter | 3 mm – 200 mm |
| Free Length | 5 mm – 800 mm |
| Spring Index | 4 – 12 (customizable) |
| End Type for Compression Springs | Closed, ground, open, or squared |

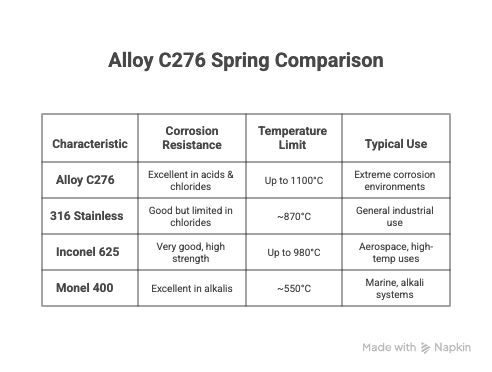

Performance Comparison: C276 vs Other Spring Alloys
| Alloy | Corrosion Resistance | Temperature Limit | Typical Use |
|---|---|---|---|
| C276 | Excellent in acids & chlorides | Up to 1100°C | Extreme corrosion environments |
| 316 Stainless | Good but limited in chlorides | ~870°C | General industrial use |
| Inconel 625 | Very good, high strength | Up to 980°C | Aerospace, high-temp uses |
| Monel 400 | Excellent in alkalis | ~550°C | Marine, alkali systems |
Factors Affecting Custom Alloy C276 Spring Pricing
| Factor | Impact on Price |
|---|---|
| Wire Diameter | Larger diameters increase cost |
| Spring Type | Complex coils cost more |
| Tolerances | Tighter tolerances require precision tooling |
| Order Quantity | Bulk orders reduce per-piece cost |
| Surface Treatment | Passivation or polishing adds cost |
Quality Testing for Alloy C276 Springs
| Test Type | Purpose |
|---|---|
| Load Testing | Ensures correct compression/tension force |
| Dimensional Inspection | Confirms outer diameter, wire diameter, and free length |
| Fatigue Testing | Evaluates performance under repeated cycles |
| Positive Material Identification (PMI) | Verifies C276 alloy grade |
| Surface Roughness Test | Ensures smooth finish for corrosion resistance |
Benefits of Custom Manufacturing
Custom manufacturing ensures the spring meets exact requirements for load, rate, stress limit, and environmental resistance. Engineers can specify dimensional tolerances, end styles, and heat treatment procedures to optimize performance for specific machinery and corrosive media.
Related Questions
1. What are the advantages of Alloy C276 springs?
They provide exceptional corrosion resistance, high-temperature strength, and long service life in harsh chemical and marine environments.
2. Where are Alloy C276 springs commonly used?
They are widely used in chemical processing equipment, marine systems, oil & gas tools, pollution-control systems, and high-corrosion industrial machinery.
3. Can Alloy C276 springs be custom-made for specific applications?
Yes, manufacturers can customize wire diameter, coil diameter, length, load capacity, and spring type based on the required operating environment and mechanical conditions.
