Hastelloy C276 round bar is a high-performance nickel-molybdenum-chromium alloy specifically engineered for extremely corrosive environments. Known for its exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking, C276 maintains mechanical strength and thermal stability under harsh chemical exposure. Widely used in chemical processing equipment, marine and offshore engineering, and industrial valves and shafts, Hastelloy C276 round bars offer superior durability and long-term reliability compared with conventional stainless steels and other nickel alloys.

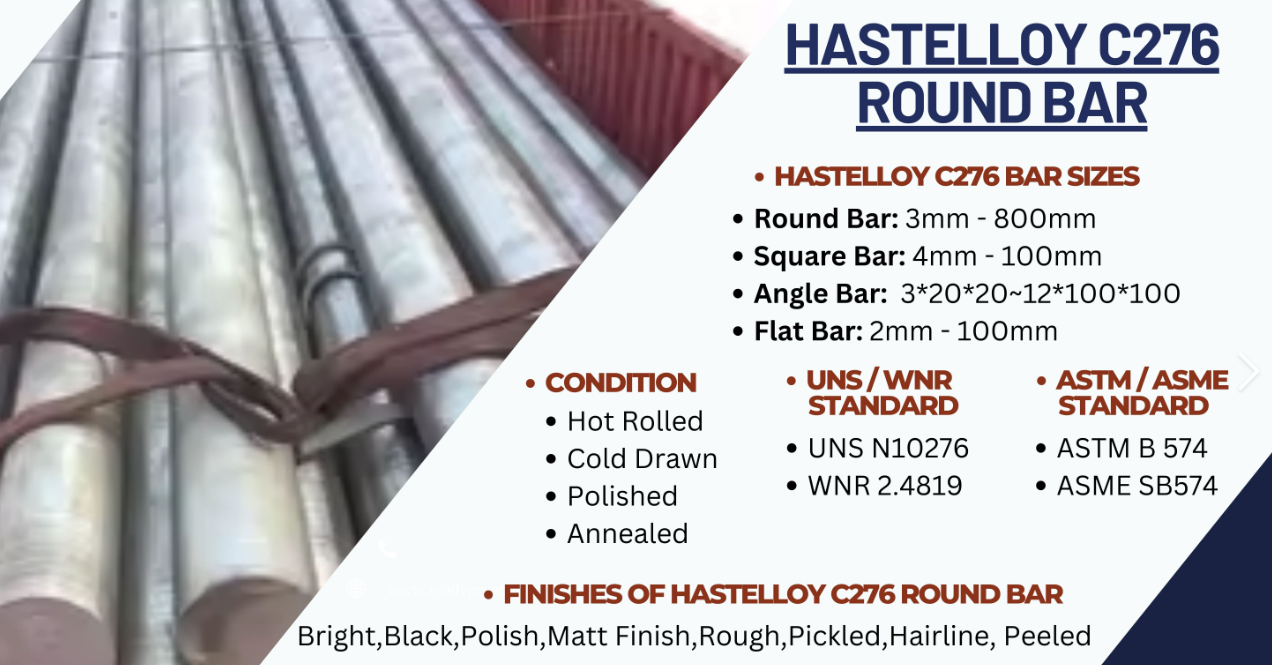

Introduction to Hastelloy C276 Round Bar
Hastelloy C276 is part of the nickel-based alloy family designed to withstand highly oxidizing and reducing chemical environments. Its composition provides a combination of high corrosion resistance, mechanical strength, and thermal stability, making it suitable for a wide range of demanding applications where standard stainless steels fail.
Material Characteristics and Advantages
| Feature | Description |
|---|---|
| Corrosion Resistance | Resists oxidizing and reducing acids, chlorides, and seawater |
| High Strength | Maintains mechanical integrity at elevated temperatures |
| Ductility | Good formability for hot/cold working and machining |
| Thermal Stability | Performs reliably in high-temperature chemical environments |
| Weldability | Can be welded with minimal sensitization or cracking |
Chemical Composition and Its Influence on Performance
| Element | Content (%) | Performance Impact |
|---|---|---|
| Nickel (Ni) | 57 min | Main matrix; provides corrosion resistance and toughness |
| Molybdenum (Mo) | 15 – 17 | Enhances resistance to pitting and crevice corrosion |
| Chromium (Cr) | 14 – 16 | Forms protective oxide layer for high-temperature resistance |
| Tungsten (W) | 3 – 4 | Improves resistance to reducing acids |
| Cobalt (Co) | ≤ 2 | Stabilizes microstructure and maintains mechanical properties |
Performance in Extreme Corrosive Conditions
Resistance to Acids and Chlorides
C276 round bars excel in handling strong oxidizing and reducing acids, including hydrochloric, sulfuric, and nitric acid. They also resist chloride-induced pitting and crevice corrosion, making them ideal for chemical reactors, heat exchangers, and marine applications.
High-Temperature Stability
The alloy maintains mechanical integrity and oxidation resistance in temperatures up to 600°C, ensuring long-term performance in chemical processing equipment and industrial furnace applications.
Mechanical Properties of C276 Round Bar
| Property | Typical Value |
|---|---|
| Tensile Strength | 80 – 130 ksi (550 – 900 MPa) |
| Yield Strength | 35 – 85 ksi (240 – 585 MPa) |
| Elongation | 30 – 50% |
| Hardness | HRB 90 – 100 |
Cold Work and Heat Treatment Effects
Cold working increases strength through strain hardening, but excessive deformation may reduce ductility. Stress relief heat treatment is recommended after forming to minimize residual stress and prevent distortion.
Manufacturing Process and Standards
| Stage | Process Description |
|---|---|
| Melting | Vacuum induction melting (VIM) or electric arc melting (EAM) |
| Forging / Hot Rolling | Forms billets into round bar shapes |
| Solution Annealing | Homogenizes microstructure and relieves stresses |
| Surface Finishing | Hot rolled, bright finished, or ground depending on tolerance |
Standard Sizes and Specifications
| Form | Diameter Range | Length |
|---|---|---|
| Hot Rolled Round Bar | 10 – 120 mm | Up to 6 m |
| Forged Round Bar | 120 – 500 mm | Custom lengths |
| Bright / Machined Bar | 6 – 80 mm | Up to 6 m |
Typical Applications
- Chemical processing equipment
- Valves, pumps, and fittings
- Marine and offshore engineering
- Heat exchangers and condensers
- Corrosion-resistant fasteners and shafts
Comparison with Stainless Steel and Other Nickel Alloys
Compared to 316L or 904L stainless steel, Hastelloy C276 offers far superior corrosion resistance in oxidizing/reducing acids and chloride environments. Compared with Inconel 625, C276 has better resistance to pitting and crevice corrosion but slightly lower high-temperature strength.
Considerations for Purchasing C276 Round Bar
When sourcing C276 round bars, buyers should verify material certifications (ASTM B574 / UNS N10276), check dimensional tolerances, and confirm the solution-annealed condition. Reputable suppliers provide chemical analysis and mechanical test reports to ensure quality.
Frequently Asked Questions (FAQ)
What is Hastelloy C276 round bar mainly used for?
It is primarily used in highly corrosive chemical processing environments, marine engineering, and industrial equipment exposed to strong acids.
Can C276 round bars withstand seawater exposure?
Yes. C276 exhibits excellent resistance to seawater, chloride-induced pitting, and crevice corrosion.
Is Hastelloy C276 stronger than Inconel 625?
C276 has superior corrosion resistance but slightly lower high-temperature strength compared to Inconel 625. Selection depends on the environment and required mechanical load.
