Incoloy 825 round bar is a nickel-iron-chromium alloy enriched with molybdenum and copper, specifically designed for excellent resistance to both oxidizing and reducing environments. This alloy provides outstanding performance in acidic conditions such as sulfuric and phosphoric acids, while also offering strong resistance to stress corrosion cracking (SCC) and chloride attack. Due to its balanced composition and cost-effectiveness, Incoloy 825 round bars are widely used in chemical processing, marine engineering, and pollution control systems.
Introduction to Incoloy 825 Alloy
Incoloy 825 is a corrosion-resistant alloy belonging to the iron-nickel-chromium family. The addition of molybdenum enhances resistance to pitting and crevice corrosion, while copper improves performance in reducing acids. This combination makes it highly versatile for harsh industrial environments.

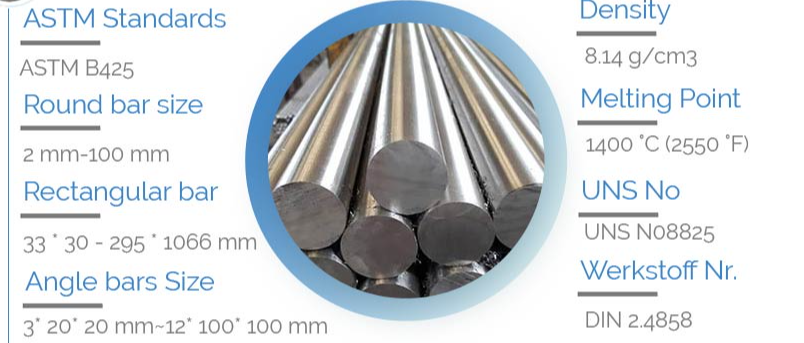

Incoloy 825 Round Bar Overview
| Feature | Description |
|---|---|
| Alloy Type | Ni-Fe-Cr alloy with Mo and Cu additions |
| Key Strength | Excellent corrosion resistance in acids and chlorides |
| Typical Forms | Round bar, plate, pipe, forging |
| Applications | Chemical, marine, oil & gas industries |
Chemical Composition Characteristics (Ni-Fe-Cr + Mo + Cu)
| Element | Content (%) | Function |
|---|---|---|
| Nickel (Ni) | 38 – 46 | Provides corrosion resistance and structural stability |
| Iron (Fe) | Balance | Improves cost efficiency and mechanical strength |
| Chromium (Cr) | 19.5 – 23.5 | Enhances oxidation and corrosion resistance |
| Molybdenum (Mo) | 2.5 – 3.5 | Improves resistance to pitting and crevice corrosion |
| Copper (Cu) | 1.5 – 3.0 | Improves resistance to sulfuric and reducing acids |
Effect of Multi-Element Alloying on Corrosion Resistance
The synergistic effect of nickel, chromium, molybdenum, and copper provides Incoloy 825 with the ability to resist a wide range of corrosive media. This multi-element design ensures stability in both oxidizing and reducing environments, unlike many single-purpose alloys.
Corrosion Resistance in Acidic Environments
Sulfuric Acid
Incoloy 825 demonstrates excellent resistance to sulfuric acid across a wide concentration range, making it suitable for acid handling and processing systems.
Phosphoric Acid
The alloy performs well in phosphoric acid environments, commonly found in fertilizer and chemical industries.
Resistance to Stress Corrosion Cracking (SCC)
Due to its high nickel content, Incoloy 825 exhibits excellent resistance to chloride-induced stress corrosion cracking, which is a critical advantage over many stainless steels.
Pitting and Crevice Corrosion Resistance
| Property | Performance |
|---|---|
| Pitting Resistance | Good to excellent |
| Crevice Corrosion Resistance | Good |
| Localized Corrosion | Resistant in chloride environments |
Performance in Seawater and Chloride Environments
Incoloy 825 performs reliably in seawater and chloride-containing environments, particularly where resistance to stress corrosion cracking is required. However, it is not as resistant to pitting as high-molybdenum alloys like Hastelloy C276.
Mechanical Properties and Strength Characteristics
| Property | Typical Value |
|---|---|
| Tensile Strength | ~550 – 750 MPa |
| Yield Strength | ~220 – 450 MPa |
| Elongation | 30 – 45% |
Heat Treatment and Solution Annealing
Incoloy 825 is typically supplied in the solution-annealed condition to achieve optimal corrosion resistance and ductility. Heat treatment helps homogenize the microstructure and eliminate residual stresses.
Machining and Welding Characteristics
| Property | Description |
|---|---|
| Machinability | Moderate; requires sharp tools and controlled speeds |
| Formability | Good for hot and cold forming |
| Weldability | Excellent; suitable for most conventional welding methods |
Common Size Range and Tolerances
| Type | Diameter Range | Length |
|---|---|---|
| Hot Rolled Bar | 10 – 120 mm | Up to 6 m |
| Forged Bar | 120 – 500 mm | Custom |
| Bright Bar | 6 – 80 mm | Up to 6 m |
Surface Finish Options
- Black (hot rolled)
- Turned / machined
- Polished or ground
Standards and Material Designations
| Standard | Designation |
|---|---|
| ASTM | B425 |
| UNS | N08825 |
Typical Applications
- Chemical processing equipment
- Acid pickling systems
- Heat exchangers
- Marine and offshore components
- Pollution control equipment
Comparison with Inconel 625 and Hastelloy C276
| Property | Incoloy 825 | Inconel 625 | Hastelloy C276 |
|---|---|---|---|
| Corrosion Resistance | Excellent (acid environments) | Very good | Outstanding |
| High-Temperature Strength | Moderate | High | Moderate |
| Cost | Moderate | High | Very high |
Considerations When Purchasing Incoloy 825 Round Bar
Buyers should verify ASTM B425 certification, confirm UNS N08825 designation, and ensure the material is supplied in the correct heat-treated condition. It is also important to check dimensional tolerances, surface finish, and supplier inspection reports.
Frequently Asked Questions (FAQ)
What is Incoloy 825 round bar mainly used for?
It is widely used in chemical processing, acid handling, and marine environments requiring corrosion resistance.
Is Incoloy 825 suitable for seawater?
Yes, especially where resistance to stress corrosion cracking is required, though it is less resistant to pitting than C276.
How does Incoloy 825 compare to Hastelloy C276?
Incoloy 825 is more cost-effective but offers lower resistance to extreme corrosion compared to Hastelloy C276.
