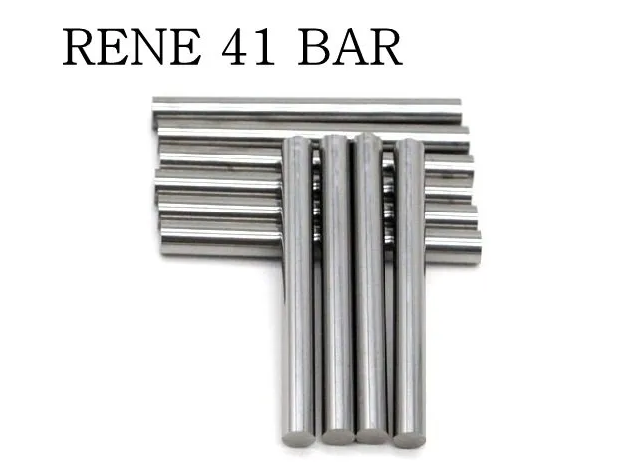

Rene 41 round bar is a nickel-based superalloy designed for high-temperature structural applications. It is widely used in aerospace and gas turbine industries due to its exceptional high-temperature strength, creep resistance, and fatigue durability. This article details its composition, mechanical and physical properties, heat treatment, and typical applications.
Rene 41 Alloy Overview
Rene 41 is developed for components exposed to extreme temperatures and stresses. It combines high nickel content with alloying elements such as cobalt, chromium, molybdenum, aluminum, and titanium to achieve superior high-temperature performance.
Rene 41 Round Bar Product Overview
The round bar form of Rene 41 is commonly used for shafts, turbine discs, fasteners, and critical engine components. Bars are supplied in various diameters and lengths with high dimensional precision and surface quality.
Chemical Composition and Its Effect on Bar Properties
| Element | Content (%) | Function |
|---|---|---|
| Nickel (Ni) | Balance | Base matrix, corrosion resistance, high-temperature stability |
| Cobalt (Co) | 13 – 16 | Enhances high-temperature strength and oxidation resistance |
| Chromium (Cr) | 7 – 10 | Improves oxidation resistance |
| Molybdenum (Mo) | 2.5 – 3.5 | Increases creep resistance |
| Aluminum (Al) | 3.2 – 3.8 | Forms γ′ precipitates for strengthening |
| Titanium (Ti) | 2.0 – 2.6 | Enhances precipitation hardening |
| Carbon (C) | 0.06 – 0.10 | Controls grain boundary strength |
| Iron (Fe) | ≤ 2.0 | Minor element, influences toughness |
High-Temperature Strength and Creep Resistance
Rene 41 round bars maintain excellent tensile and yield strength up to 760–870°C. Their creep resistance ensures dimensional stability for turbine shafts and hot-section components under long-term service conditions.
Fatigue Performance Under Cyclic Loads
The alloy shows exceptional high-temperature fatigue resistance, making it suitable for rotating components in gas turbines and aerospace engines. Cyclic stress tests demonstrate minimal elongation and deformation over time.
Oxidation and Corrosion Resistance at High Temperatures
Chromium and cobalt provide strong oxidation resistance, while nickel ensures stability in combustion environments. Rene 41 can operate reliably in hot air, combustion gases, and mildly corrosive atmospheres.
Mechanical Properties
| Property | Value |
|---|---|
| Ultimate Tensile Strength | 1100 – 1300 MPa |
| Yield Strength (0.2% offset) | 690 – 860 MPa |
| Elongation | 10 – 20% |
| Hardness (HRB) | 85 – 92 |
Physical Properties
| Property | Value |
|---|---|
| Density | 8.25 g/cm³ |
| Thermal Expansion | 13 × 10⁻⁶ /°C |
| Specific Heat | 435 J/kg·K |
| Melting Range | 1300 – 1360°C |
Heat Treatment and Aging Effects
Solution annealing followed by aging enhances γ′ precipitation, which increases high-temperature strength, creep resistance, and fatigue durability. The process can be adjusted to optimize mechanical performance for specific bar sizes.
Machining and Welding Performance
Rene 41 is difficult to machine due to work hardening. Specialized tooling and coolant are required for turning, milling, and grinding. Welding requires preheating and post-weld heat treatment to avoid cracking and preserve high-temperature properties.
Common Bar Specifications and Tolerances
- Diameter: 10 – 150 mm
- Length: 500 – 3000 mm
- Tolerances: ±0.1 – 0.5 mm depending on size
Surface Treatment and Delivery Condition
- Surface states: black, machined, ground
- Delivery: solution annealed or aged
Standards and Alloy Designations
- AMS 5662 / AMS 5663
- ASTM B637
- UNS N07041
Typical Applications
- Aerospace engine shafts and discs
- Gas turbine hot-section components
- Turbocharger rotors
- High-temperature rotating machinery
Frequently Asked Questions (FAQ)
What is the maximum operating temperature for Rene 41 round bar?
Up to approximately 870°C depending on stress and environment.
Can Rene 41 bars be welded?
Yes, but preheating and post-weld heat treatment are necessary to maintain mechanical properties.
What forms and sizes are commonly available?
Round bars typically range from 10 mm to 150 mm in diameter and lengths of 500 mm to 3 m.
How does Rene 41 compare to Inconel 718?
Rene 41 offers superior high-temperature creep and fatigue resistance, while Inconel 718 is more versatile and easier to machine.
