Waspaloy and Inconel 718 are two widely used nickel-based superalloys in aerospace and high-temperature engineering. While both materials offer excellent mechanical performance, they differ significantly in design philosophy, strengthening mechanisms, and application suitability. This guide provides a detailed comparison to help you select the right alloy for your project.
Overview of Waspaloy and Inconel 718
Waspaloy is designed for superior high-temperature strength and creep resistance, especially in turbine environments. Inconel 718, on the other hand, offers a balanced combination of strength, corrosion resistance, and excellent manufacturability.
Differences in Design Objectives
Waspaloy
Optimized for high-temperature strength and long-term creep resistance in demanding aerospace applications.
Inconel 718
Designed for versatility, with strong mechanical properties, excellent weldability, and ease of fabrication.

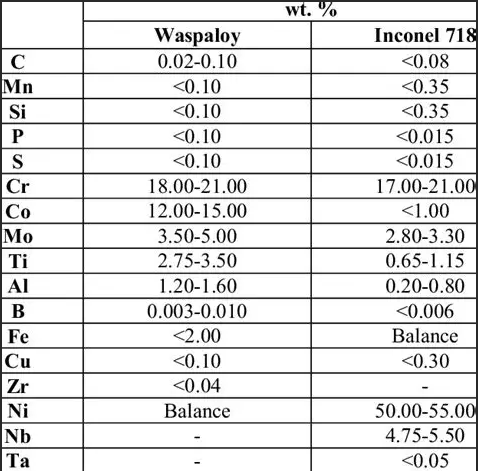

Chemical Composition Comparison
| Element | Waspaloy (%) | Inconel 718 (%) |
|---|---|---|
| Nickel (Ni) | Balance | 50 – 55 |
| Chromium (Cr) | 18 – 21 | 17 – 21 |
| Cobalt (Co) | 12 – 15 | — |
| Molybdenum (Mo) | 3.5 – 5.0 | 2.8 – 3.3 |
| Niobium (Nb) | — | 4.75 – 5.5 |
| Aluminum (Al) | 1.2 – 1.6 | 0.2 – 0.8 |
| Titanium (Ti) | 2.75 – 3.25 | 0.65 – 1.15 |
Strengthening Mechanism Comparison
Waspaloy (γ′ Strengthening)
Strength is primarily derived from γ′ precipitates formed by aluminum and titanium, providing excellent high-temperature stability.
Inconel 718 (γ″ + γ′ Strengthening)
Uses a combination of γ″ (niobium-based) and γ′ strengthening, offering high strength along with improved weldability.
High-Temperature Strength Comparison
Waspaloy maintains higher strength at temperatures above 700°C, making it more suitable for hot-section components. Inconel 718 performs well up to about 650°C.
Creep and Stress Rupture Resistance
Waspaloy exhibits superior creep resistance and longer stress rupture life under sustained high-temperature loading compared to Inconel 718.
Fatigue Resistance Comparison
Both alloys provide excellent fatigue resistance, but Waspaloy performs better in high-temperature cyclic environments.
Oxidation and Corrosion Resistance
Both alloys have good oxidation resistance. Inconel 718 generally offers better corrosion resistance in aggressive environments, while Waspaloy focuses on high-temperature oxidation stability.
Operating Temperature Range
| Alloy | Max Service Temperature |
|---|---|
| Waspaloy | Up to ~870°C |
| Inconel 718 | Up to ~650°C |
Heat Treatment Comparison
Waspaloy
Requires solution treatment followed by aging to develop γ′ precipitates.
Inconel 718
Uses a multi-step aging process to form γ″ and γ′ phases, providing excellent strength and stability.
Machining and Welding Comparison
Waspaloy
Difficult to machine and weld due to high strength and work hardening characteristics.
Inconel 718
Much easier to machine and weld, making it more cost-effective for fabrication.
Typical Application Differences
| Application | Waspaloy | Inconel 718 |
|---|---|---|
| Aerospace Turbine Discs | Preferred | Used |
| Gas Turbine Components | Yes | Yes |
| General High-Temp Structures | Limited | Widely used |
| Fasteners | Yes | Widely used |
Cost and Price Analysis
Waspaloy is generally more expensive due to higher cobalt content and superior high-temperature performance. Inconel 718 offers a better balance between cost and performance for many applications.
Material Selection for Extreme Conditions
- Choose Waspaloy for temperatures above 700°C and long-term creep resistance
- Choose Inconel 718 for moderate temperatures and easier fabrication
When Waspaloy Is Better Than 718
- High-temperature turbine applications
- Long-term stress and creep conditions
- Critical aerospace components
When Inconel 718 Is More Suitable
- Complex machining and welding requirements
- Moderate temperature applications
- Cost-sensitive projects
Frequently Asked Questions (FAQ)
Which alloy has better high-temperature strength?
Waspaloy offers superior strength at higher temperatures compared to Inconel 718.
Is Inconel 718 easier to machine?
Yes, it is significantly easier to machine and weld than Waspaloy.
Which alloy has better creep resistance?
Waspaloy provides better creep and stress rupture resistance.
Which alloy is more cost-effective?
Inconel 718 is generally more cost-effective for most applications.
